SCVETechnical SpecificationsDetailed parameter analysis, facilitating equipment selection and integration
-
Product modelSF45-10S
SF45-20S
SF45-30S
SF45-40S
SF45-50S
SF45-60S
-
Torque
(N.M)10
20
30
40
50
60
-
Rotational speed
(rpm)17
17
15
12
12
12
-
Rated voltage (v)230
230
230
230
230
230
-
Frequency50
50
50
50
50
50
-
Rated power
(W)162
178
235
275
282
310
-
Rated current
(A)0.71
0.78
1.03
1.20
1.23
1.35
-
Limiting ring number (tum)：22
22
22
22
22
22
-
Protection level (IP)：IP44
IP44
IP44
IP44
IP44
IP44
-
Working hours (min)≥4
≥4
≥4
≥4
≥4
≥4
-
Net weight
(kg)2.1
2.3
2.8
3.0
3.2
3.3
SCVEProduct advantagesDetailed parameter analysis, facilitating equipment selection and integration
-

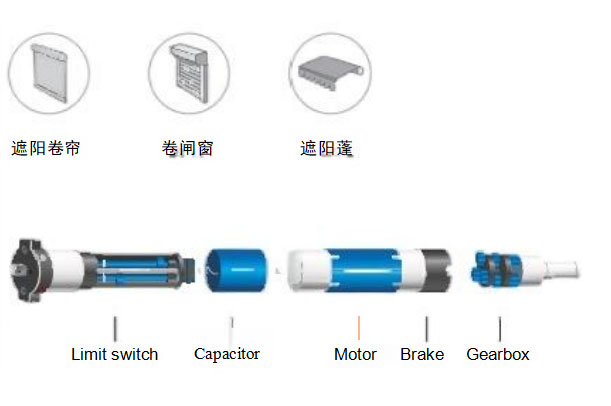

Mechanical limit stop
-
Wireless control
-
Noise reduction processing
SCVEProduct CaseThe case demonstrates strength and stable operation can be traced.
