Location：Home » Product Center » Tubular motor » DC tubular motor SF25
    SCVE

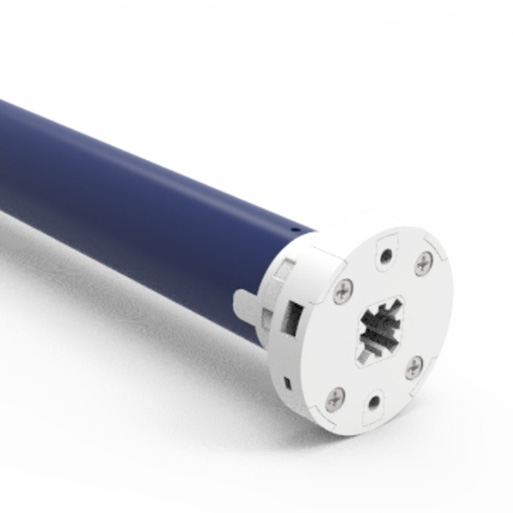

    DC tubular motorSF25

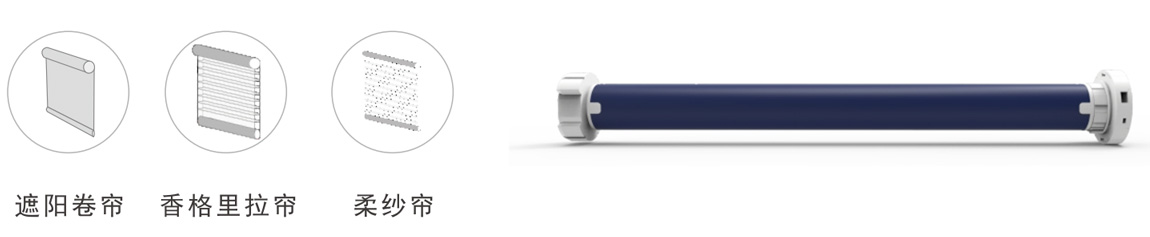

    The DC tubular motor SF25 can meet the requirements of various intelligent doors and windows, shading systems, etc. It combines stability, convenience and safety, providing users with an efficient and worry-free automated control experience.

    tubular motor

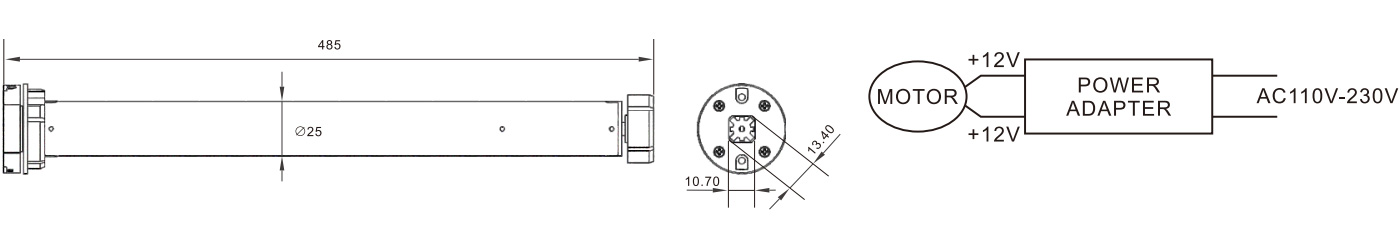

SCVETechnical SpecificationsDetailed parameter analysis, facilitating equipment selection and integration
  • Product modelSF25-0.8
    SF25-1.1
  • Torque (N.M)0.8
    1.1
  • Rotational speed (rpm)40
    30
  • Rated voltage (v)100~240
    100~240
  • Frequency433
    433
  • Rated power (W)8
    12
  • Rated current (A)0.61
    0.8
  • Limiting ring number (tum)：○∞
    ∞
  • Protection level (IP)：IP44
    IP44
  • Working hours(min)○∞
    ∞
  • Net weight (kg)-
    -
  • Is customization required? (kg)Customizable
    -

tubular motor

SCVEProduct advantagesDetailed parameter analysis, facilitating equipment selection and integration
  • SCVE

    Electronic limit switch

  • SCVE

    DC voltage transformation

  • SCVE

    Built-in reception

  • SCVE

    Five-speed regulation

  • SCVE

    Silence processing

SCVEProduct CaseThe case demonstrates strength and stable operation can be traced.
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
  • SCVE
