SCVETechnical ParametersDetailed parameter analysis to assist equipment selection and integration
-

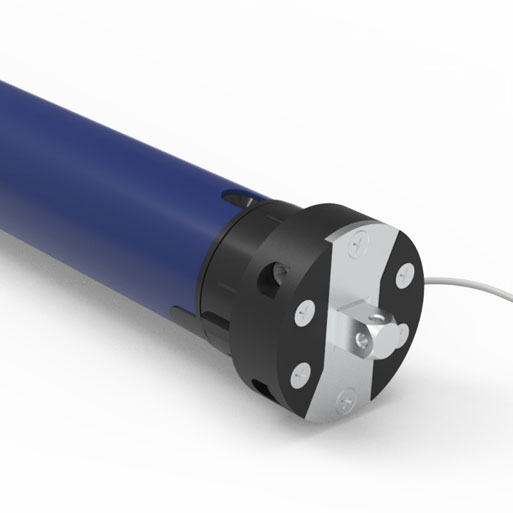

Product Model SF45-10R
SF45-20R
SF45-30R
SF45-40R
SF45-50R
-
Torque
(N.M)10
20
30
40
50
-
Rotational Speed
(rpm)17
17
15
12
12
-
Rated Voltage (V)230
230
230
230
230
-
Frequency (Hz)50
50
50
50
50
-
Rated
Power
(W)162
178
235
275
282
-
Rated
Current
(A)0.71
0.78
1.03
1.20
1.23
-
Limit Number of Turns (turn)：22
22
22
22
22
-
Protection Class (IP)：IP44
IP44
IP44
IP44
IP44
-
Working Time (min)≥4
≥4
≥4
≥4
≥4
-
Net Weight
(kg) 2.3
2.5
3.0
3.2
3.4
SCVEProduct AdvantagesDetailed parameter analysis to assist equipment selection and integration
-
Mechanical Limit
-
Built-in Receiver
-
Low Noise Processing
